Animal feed equipment
Packing scale

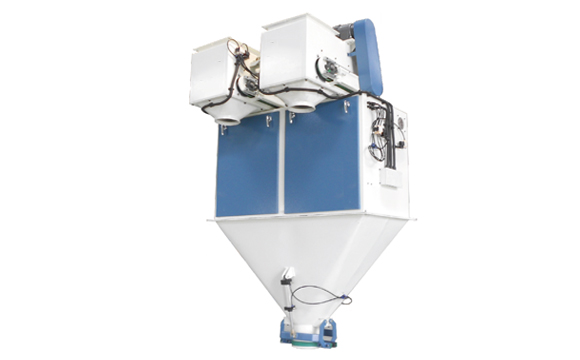

DCS-B50/S microprocessor controlled rationed packing scales for general purpose
?
Product Details
Applicable scope:
- This product is widely used in industries such as grain, feed and chemicals.
- Particles with good fluidity, or common powders whose size are less than 50 meshes.
- Intelligent weighing instrument is adopted to ensure high precision and stable performance.
- Functions of automatic error correction, alarm for out of tolerance and zero tracing are available.
- Display for gross weight, net weight and count of bags are available.
- Be able to store various formulas.
- Two lines of intensive brushes are attached on the two sides of feeding belt to prevent lateral leakage of materials.
- Dual speed motor is adopted, with cooperation of cylinder, to enable feeding at three speeds to meet the requirements on precision and speed.
- Return air port is reserved to prevent raise of dust and improve work site environment.
- Dual-hopper structure are adopted to improve the productivity of a single machine.
- The product mainly consists of dual feeding unit (belt and gate), dual scale hopper, two sensors, bag picking unit, frame, pneumatic system, control cabinet, conveyor and sealing unit.
| Model | Feeding method | Packing weight | Packing weight | Power | Packing precision |
| DCS-B50/S | Belt | 20-50kg/bag | 10-12 bags/minute | 5KW |
static±0.1% dynamic±0.2% |
| Display resolution | Temperature range | Installation height | Power supply | Air supply | |
| 10g | -10~40C | Refer to the drawing |
AC380V 50HZ |
0.4-0.6MPa 2m3/h | |
| Note: Pictures are only for reference. | |||||
