Belt conveyors
Double luffing conveyor
This series of belt conveyors are used for stacking, stacking, and loading and unloading of packages such as warehouses and docks, and are driven by electric rollers. The machine is composed of two conveyors and the front and rear frames can be lifted and lowered. The front and rear racks are equipped with hydraulic, electric or manual luffing devices, which have the characteristics of compact mechanism, high flexibility and easy movement, and can meet various forms of loading and unloading.
?
Product Details
main feature:
Flexible movement, the wings can move up and down separately.
Simple structure, small footprint and light weight.
Adopt steel tube structure, light and beautiful, and equipped with electric drum to improve maneuverability.
High carrying capacity and good wear resistance of the belt.

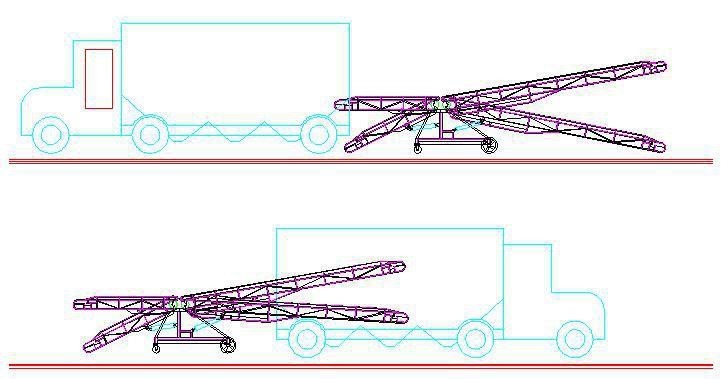

Structural design drawing:

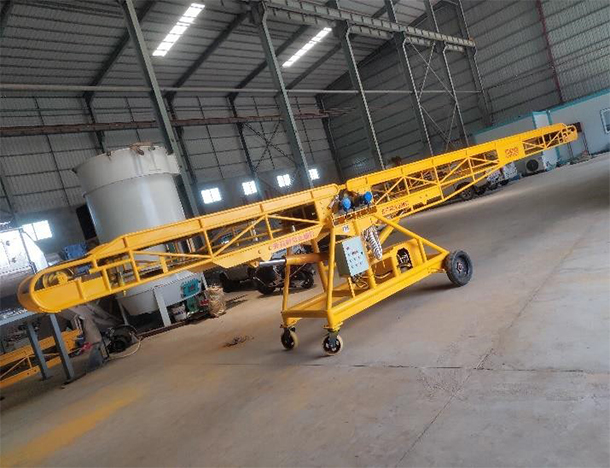

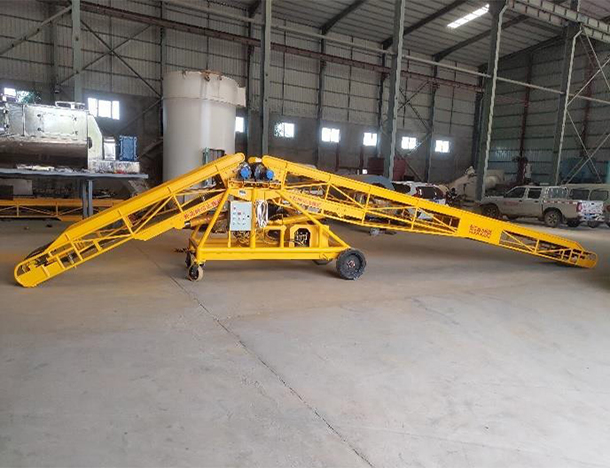

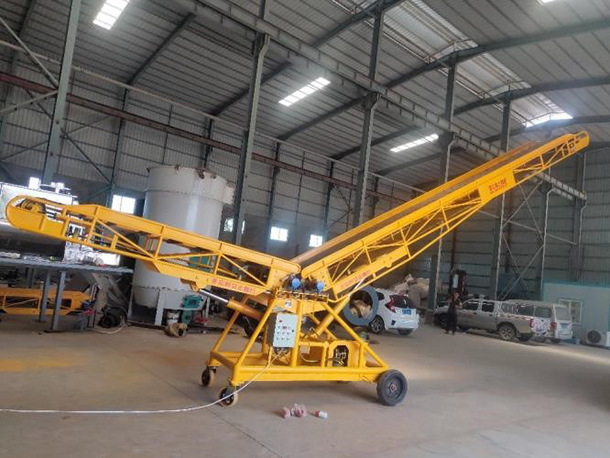

Physical display:
Technical Parameters:
Technical Parameters:
| Model |
Throughput (m3/h) |
Conveyor arm length（m） |
Conveyor width (mm) |
speed （m/s） |
Motor Power （kw） |
Maximum conveying height（m） |
Working oil pressure (Mpa) |
||
| L1 | L2 | H1 | H2 | ||||||
| SYD34 | 90 | 3 | 4 | 550 | 1.25 | 1.5x2 | 3 | 3.5 | P≤9 |
| SYD35 | 90 | 3 | 5 | 550 | 1.25 | 1.5x2 | 3 | 3.8 | P≤9 |
| SYD45 | 90 | 4 | 5 | 550 | 1.25 | 1.5x2 | 3 | 3.8 | P≤9 |
| SYD47 | 110 | 4 | 7 | 550 | 1.25 | 2.2x2 | 3.5 | 5.5 |
P≤9 |
